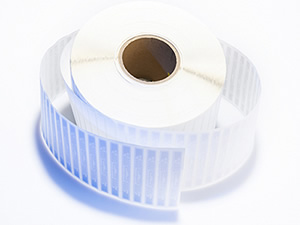

More Efficient and Low-cost RFID Tag Solution

In costume industry, retailing and e-commerce, clients need the RFID labels to show information about brand or products. To save time for clients, we could print the pattern or text confirmed by clients on the surface of labels before delivery.

Content
bar code, two-dimension code, logo, name, pattern, code, price, print ribbon and so on

• green printing
• print with carbon ribbon for variable information
• four-color int-jerk printing for variable information

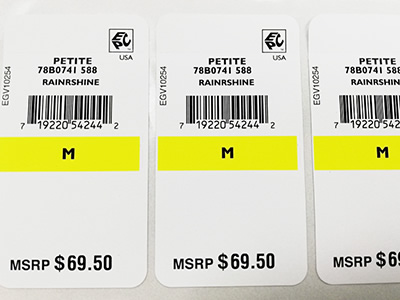

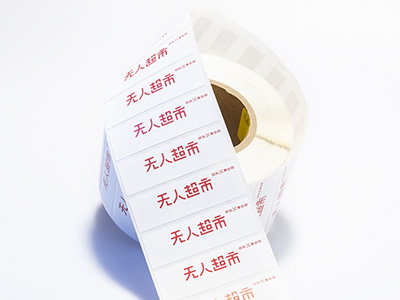

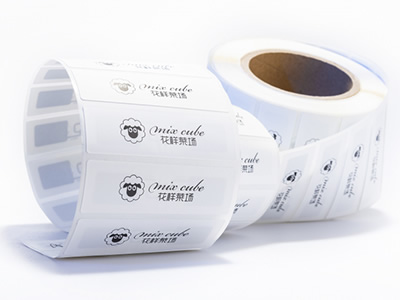

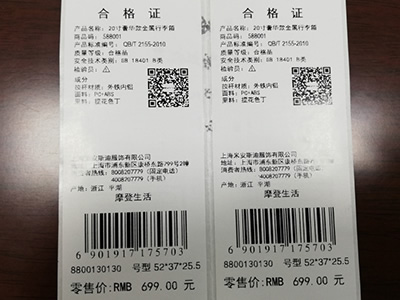

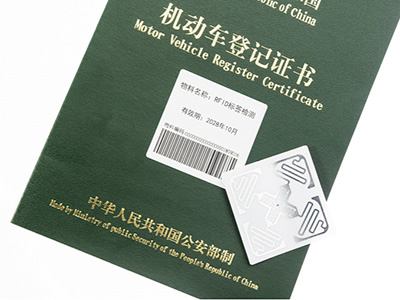

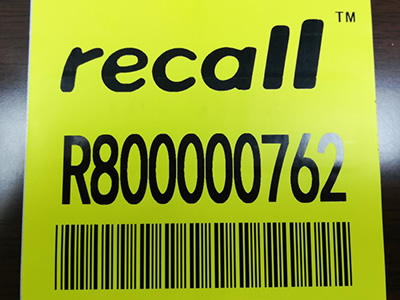

Sample presentation
We provide customized service for different industries, below are some typical samples for reference. If you need to print similar labels, you could tell us your specific requirements, our team are ready to give professional response to you at any time.

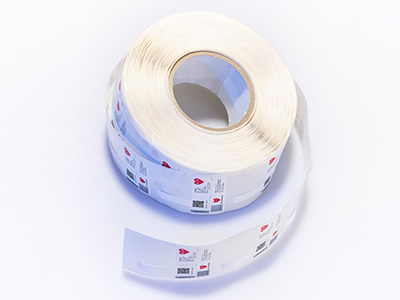

Product	JL-G14 Printed RFID Tag

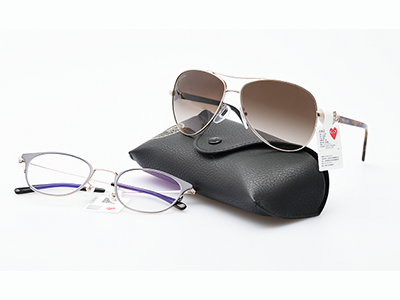

Application Areas	Glasses tagging; cosmetics; use with small metallic objects
*Integrated Circuit(IC)	Alien Higgs-4
*Label Size	2.64*2.13"(67*54mm)
*Label Material	Avery dennison 58g Sub white PP（BW0052)  ①Good environmental protection performance,easy to recover and waste treatment;  ②Good stability;  ③Corrosion resistance, durability, 100% waterproof, anti-chemical and anti-grease, good processing performance;  ④High strength;
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection; ③- 10 ℃ to 80 ℃ temperature range
*Personalization	①Scan QR code on label material and write data in IC ②We can HEI ECO print and barcode\number etc. print; write EPC for you;  or you could print by yourselves, using Resin-based carbon tape
*Shipping Method	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：15kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，32 bits TID，64 bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note

Product	JL-AM18 Printed RFID Tag
Example for application	Asset management
*Integrated Circuit(IC)	Impinj Monza 4QT
*Label Size	1.969*1.969"（50*50mm）
*Label Material	UPM 105g sub white coated art paper  ①High smoothness, good gloss, high whiteness;  ②Good elasticity and strong water resistance and tensile strength; ③Good performace of inks absorption;
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection； ③- 10 ℃ to 80 ℃ temperature range
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you;  or you could print by yourselves, using mixed base carbon tape
*Shipping Method	Single row reel form 2,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：8kg/carton
MOQ	24,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,512 bits user，96 bits TID
Comments	Dear: all marked ' * ' could be customized ,please take a note
