More Efficient and Low-cost RFID Tag Solution

Due to the interference to electromagnetic waves caused by metal, the ordinary RFID labels will be hard to identify if it is attached directly to metals. Kingloo improve the design of labels to make it work well even attached to metal directly

For UHF metal resistant labels, we change the design of antenna and modify the impedance parameter to attain impedance balance between chip and antenna and make the antenna emit electromagnetic waves normally even when the labels are attached to the metal.

For HF metal resistant labels,we will put a piece of magnetic sheet in the label to shield about 70 to 90 percent of interference to coil caused by metal.

• industrial equipment management
• IT equipment management
• Newly retailing or e-commerce
• Metal raw material management

Manufacture

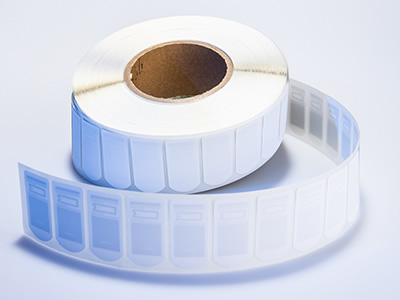

We usually use below material to make RFID metal resistant labels due to its features. If you ask for other material, please contact us, we are willing to provide customized service for you
Paper or cloth： Avery matt white PP synthetic paper（BW0052, 58g, available for int-jerk printing)
Glue: 3M 9448A waterproof double sided tape; Hangao DT3981 hot melt glue
Size: 46×23 / 98.18×12.31 (mm)

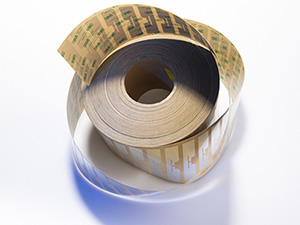

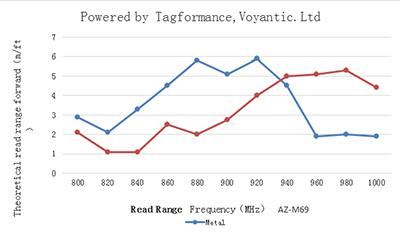

Inlay: ①AZ-M69+MR6-P，②HYD2003C-Higgs 3
Print:int-jerk printing

We could use ABS material to make rugged RFID tags, which could be attached to metal directly and work well in severer environment.

Product	JL-R09 Metal Mount RFID Tags
Example for application	Market(package material inclue metal&normal)
*Integrated Circuit(IC)	Impinj Monza R6-P
*Label Size	1.81*0.906"（46*23mm）
*Label Material	Avery dennison 80g Sub-white coated PP ①Good performace of inks absorption; ②Good environmental protection performance,easy to recover and waste treatment;  ③Good stability;  ④Corrosion resistance, durability, 100% waterproof, anti-chemical and anti-grease, good processing performance;  ⑤High strength
*Label Glue	3M9448A  ①Supplied by 3M company ②Heat-resistant of 80 ℃ for long time, heat-resistance of 120 ℃ for short time; ③Excellent high temperature resistance and adhesion;  ④High tensile strength
*Personalization	We can HEI ECO print and barcode\number,ect. print; write EPC for you;  or you could print by yourselves, using ink-jet printing
*Shipping Method	Single row reel form 3,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：6kg/carton
MOQ	24,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	96-128 bits EPC,32-64 bits user，48 bits TID
Comments	Dear: all marked ' * ' could be customized ,please take a note

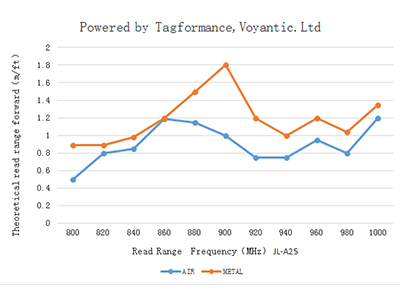

Product	JL-AM25 Metal Mount RFID Tags

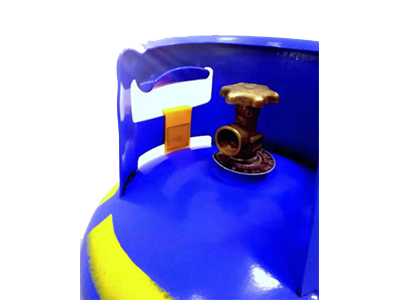

Example for application	Manage metal products
*Integrated Circuit(IC)	Impinj Monza R6
*Tag Size	1.024*1.496*（0.256~0.374）"（26*38*（6.5~9.5）mm）
*Inlay	①PCB antenna+IC  ②Copper antenna+IC
*Tag Material	ABS shell material ①Non-toxic, odorless, excellent anti- impact strength, heat and weathering resistance, good dimensional stability ②Electrical properties, wear resistance, chemical resistance, dyeability, easy for molding and mechanical processing  ③Molding temperature 240℃--265℃
*Tag Glue	3M467MP ①Supplied by 3M company ②Excellent adhesion effect, can prevent falling off and excellent waterproof performance, good processing, good temperature resistance, good adhesion;  ③Heat-resistant of 149 ℃ for long time, heat-resistance of 204 ℃ for short time
*Personalization	Laser printing customer's logo
*Shipping Method	100pcs/bag
MOQ	500pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	96-128 bits EPC，32-64 bits user，48 bits TID
Comments	Dear: all marked ' * ' could be customized ,please take a note
