More Efficient and Low-cost RFID Tag Solution

Durable

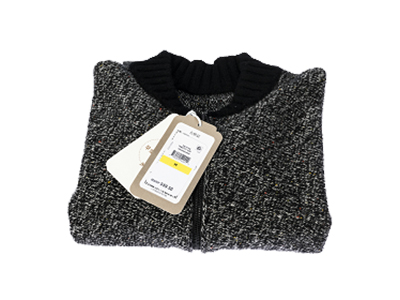

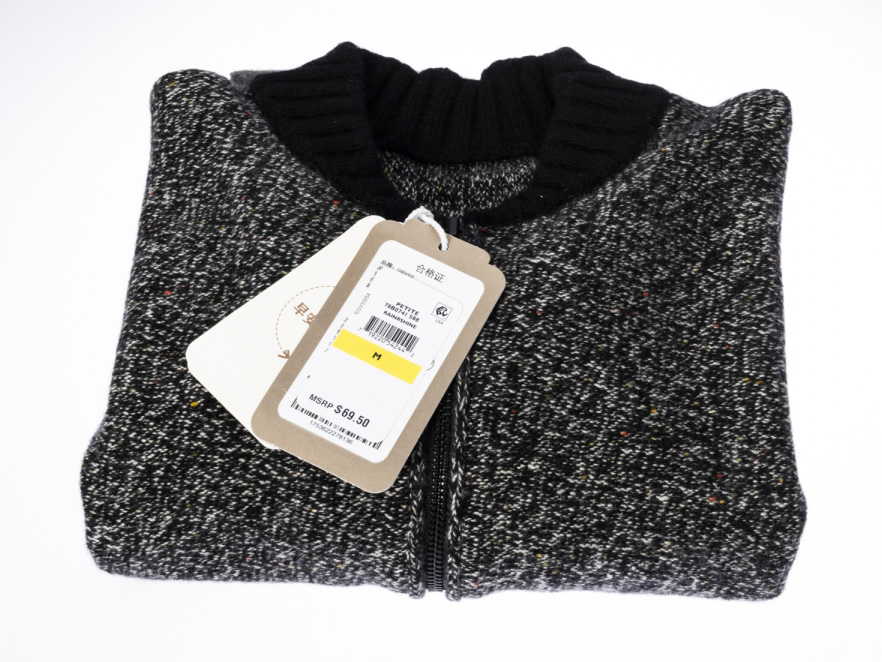

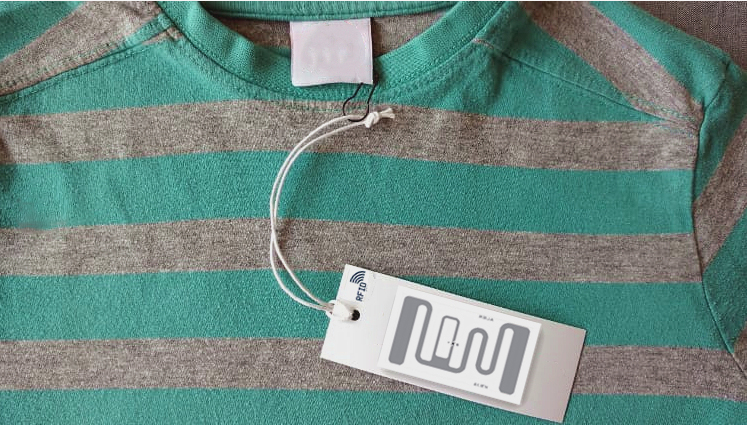

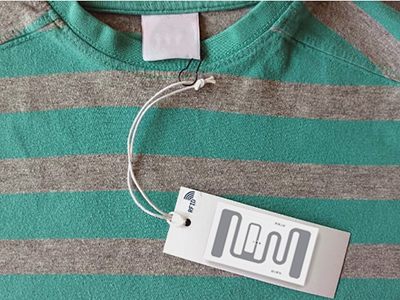

The RFID hang tags are usually made of coated paper with good crush resistance, high bending strength and high folding strength. Even in severe environment, it could work well

Store clothes information
The important information could be wrote into the RFID chip in labels, which could prevent fake,counterfeit and stealing in costume industry.

Improve manage efficiency

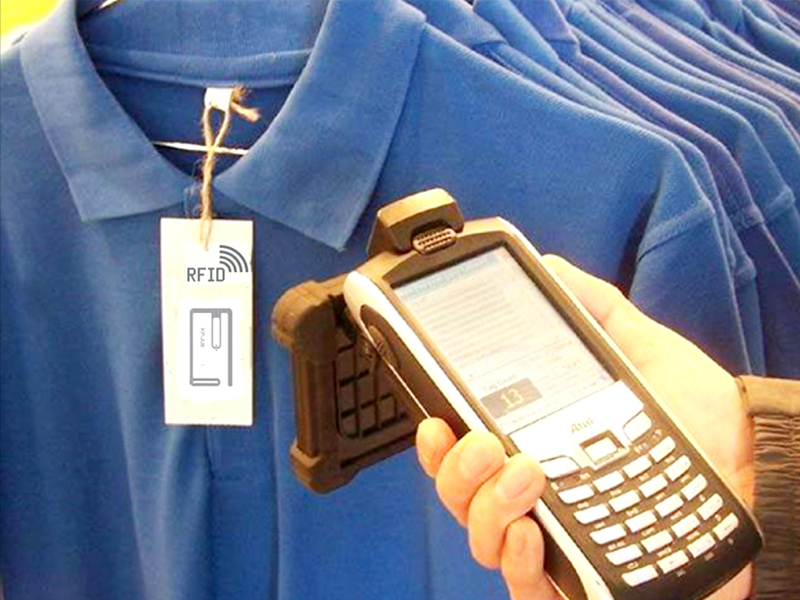

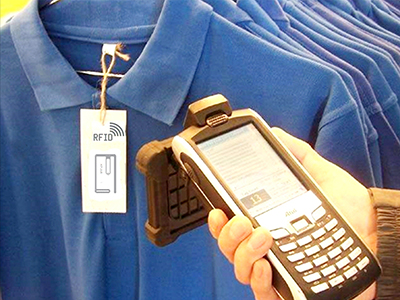

The RFID hang tags are UHF tags, which have larger read range and the RFID reader could identify more than one tags at a time.for example, if you need to count more than 100 piece of clothing, the RFID reader could help you finish this assignment in few seconds, which could improve efficiency and save cost of logistic industry and costume industry .

Product	JL-A01 RFID Labels

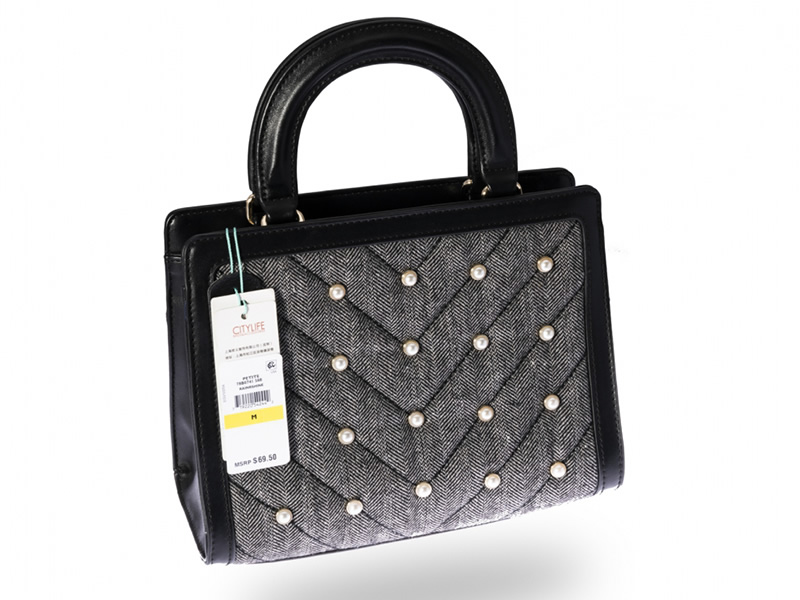

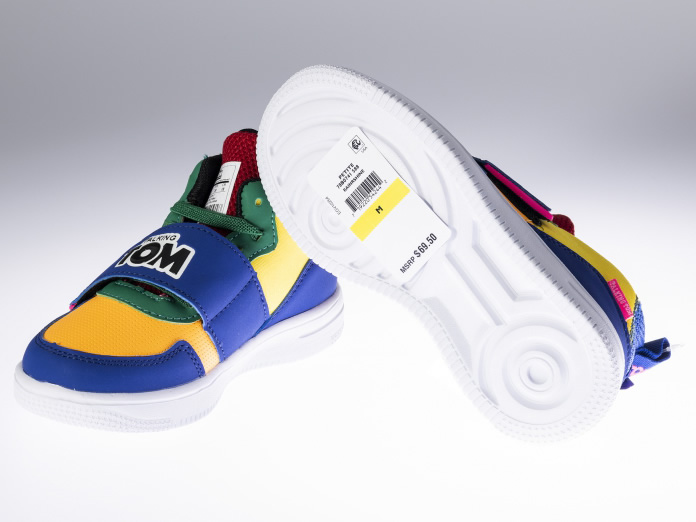

Example for application	Garment retail; Apparel; Hang-tags
*Integrated Circuit(IC)	NXP U Code 8
*Label Size	2.756*1.378"(70*35mm)
*Label Material	UPM 105g sub-white coated art paper ①High smoothness, good gloss, high whiteness;  ②Good elasticity and strong water resistance and tensile strength; ③Good performace of inks absorption
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection; ③- 10 ℃ to 80 ℃ temperature range
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you;  or you could print by yourselves, using mixed base carbon tape

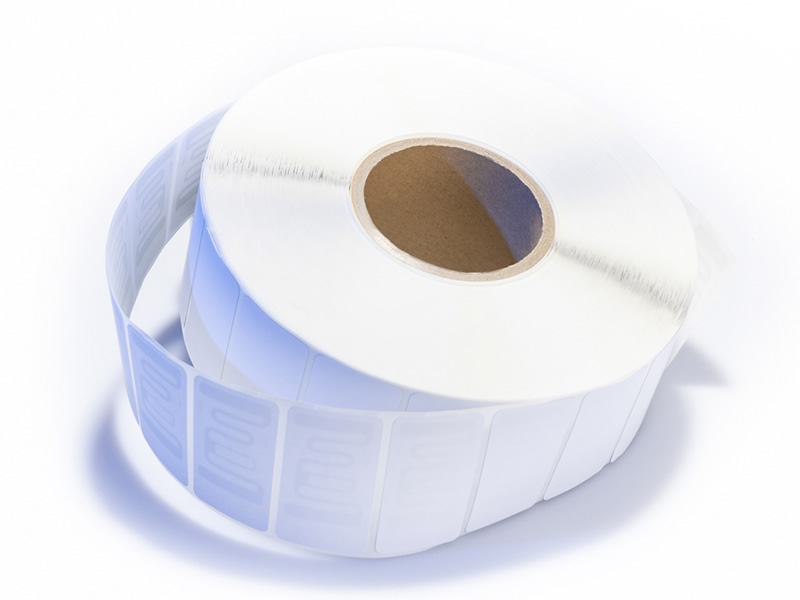

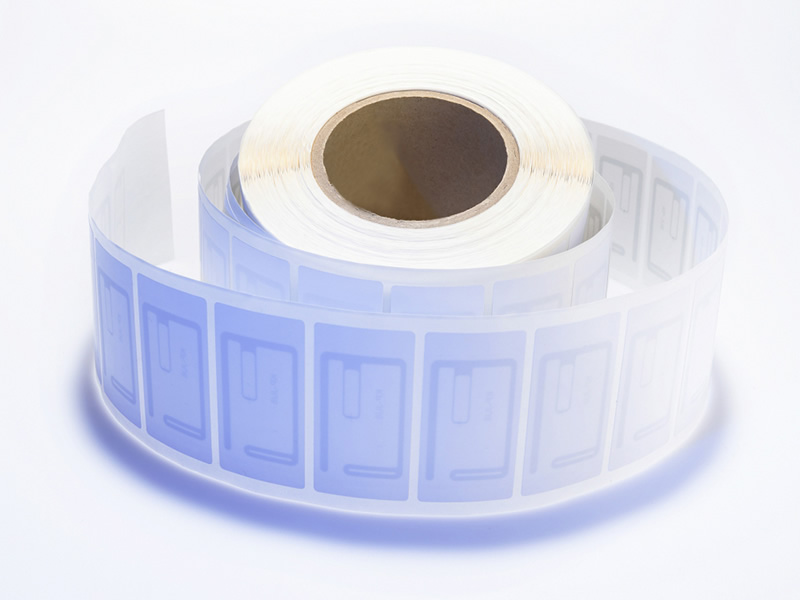

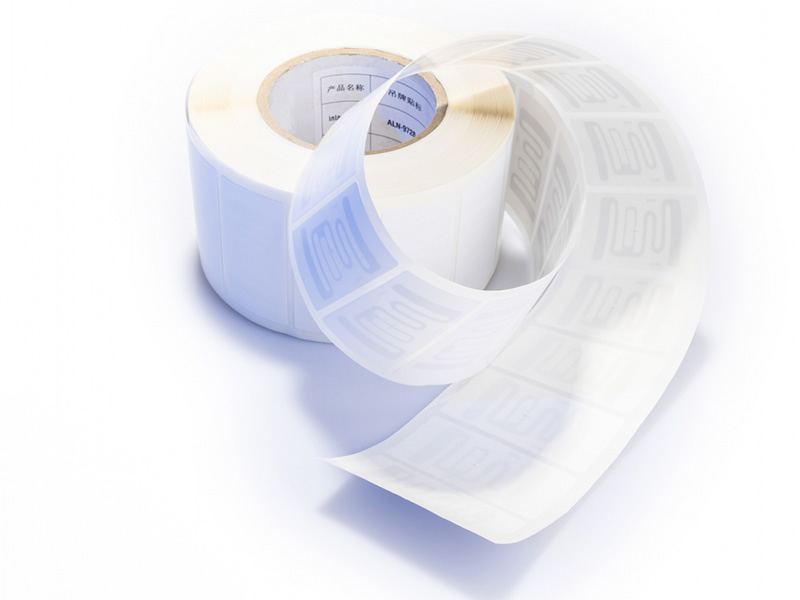

*Shipping Method	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：8.6kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC, 96 bits TID
Comments	Dear: all marked ' * ' could be customized ,please take a note

Product	JL-A02 RFID Labels
Example for application	Garment retail; Apparel; Hang-tags
*Integrated Circuit(IC)	Alien Higgs-4
*Label Size	2.756*1.378"(70*35mm)
*Label Material	UPM 105g sub-white coated art paper ①High smoothness, good gloss, high whiteness;  ②Good elasticity and strong water resistance and tensile strength; ③Good performace of inks absorption
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection; ③- 10 ℃ to 80 ℃ temperature range
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you;  or you could print by yourselves, using mixed base carbon tape
*Shipping Method	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：8.6kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，32 bits TID，64 bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note

Product	JL-A03 RFID Labels
Example for application	Garment retail; Apparel; Hang-tags
*Integrated Circuit(IC)	Alien Higgs-4
*Label Size	2.60*1.417"(66*36mm)
*Label Material	Coated art paper (whitout melt)  ①High smoothness, good gloss, high whiteness;  ②Good elasticity and strong water resistance and tensile strength; ③Good performace of inks absorption
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection; ③- 10 ℃ to 80 ℃ temperature range
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you;  or you could print by yourselves, using ink-jet print
*Shipping Method	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：8.6kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，32 bits TID，64 bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note
