More Efficient and Low-cost RFID Tag Solution

The wash labels is made of ribbon which is soft, waterproof and could accept finite times of washing. We put RFID chips inside labels and write unique identifiable number into chip,which could be identified quickly by reader. This kind of RFID wash label usually adopt UHF chip, because RFID reader could identify more than one wash labels at a time with high sensitivity and data transmit rate.

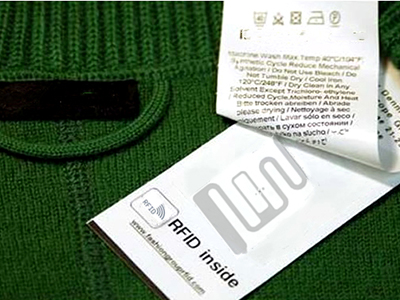

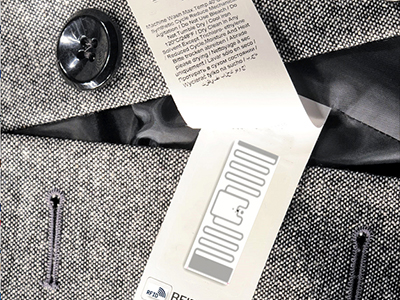

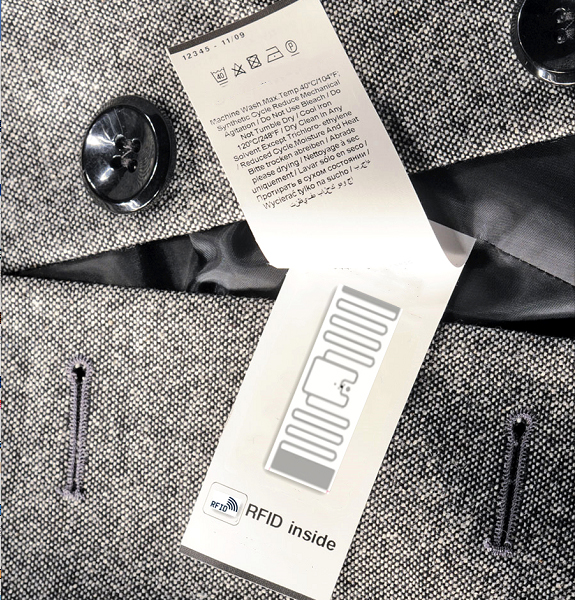

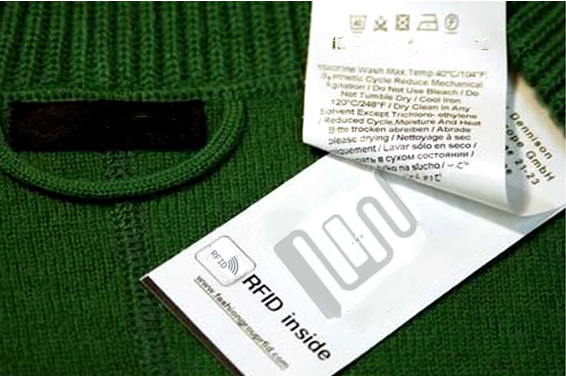

This kind RFID wash labels could be sewn to all kinds of clothes and leather products, which are applicable in costume industry, laundry shop, hospital launder, chemical plant.

Manufacture
We usually use below materials to manufacture RFID wash label, if you ask for other material, please contact us, we are willing to provide customized service for you.

Paper or cloth：①wash label ②faux cotton fabric ③beige polycotton ④specialized material for underwear ⑤nylon C501# ⑥superb nylon C330# ⑦colored coated tape ⑧ ribbon

Glue: Hangao DT3981 hot melt glue

Size:80×44 / 60×36 / 75×36 / 57×25 / 60×25 mm

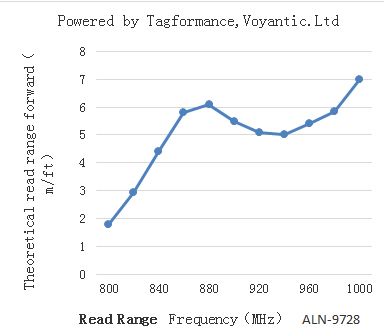

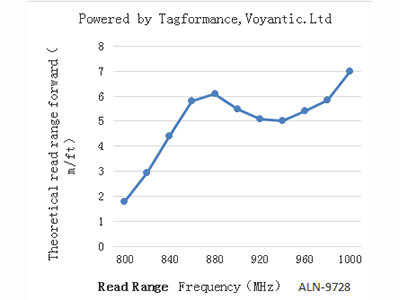

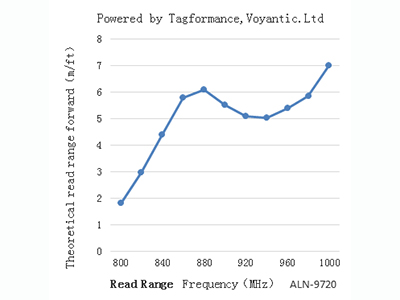

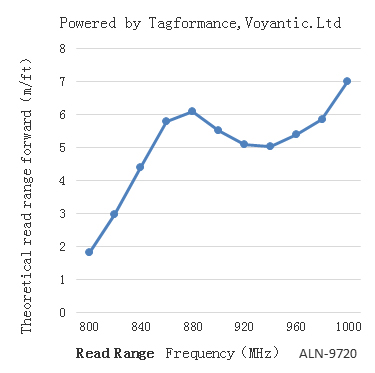

inlay：①ALN-9728+Higgs 4；②ALN-9720+Higgs 4；③SY-1540+MR6

Print:①PS Intermittent printing ② print with carbon ribbon for variable information

Product	JL-A04 RFID Wash Care Label
Example for application	Garment retail; Apparel; Hang-tags
*Integrated Circuit(IC)	Alien Higgs-4
*Label Size	3.15*1.732"(80*44mm)
*Label Material	Double face washing cloth,comfortable material ,bright color  ①Resistant to washing, scratching, smearing; ②Resistant to alcohol, detergent and other chemical properties
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection; ③- 10 ℃ to 80 ℃ temperature range

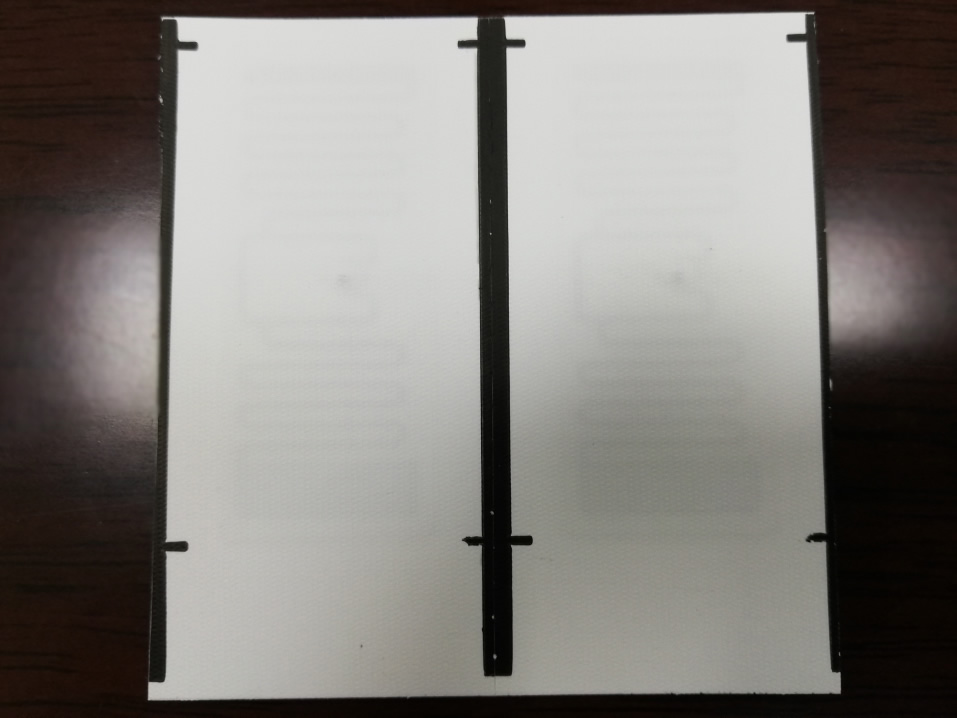

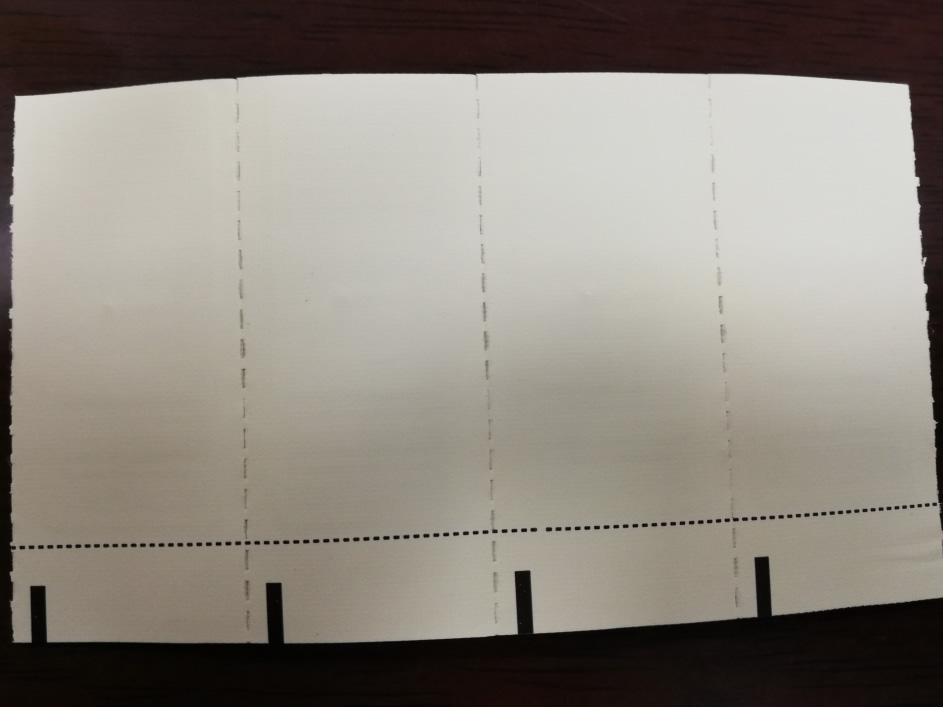

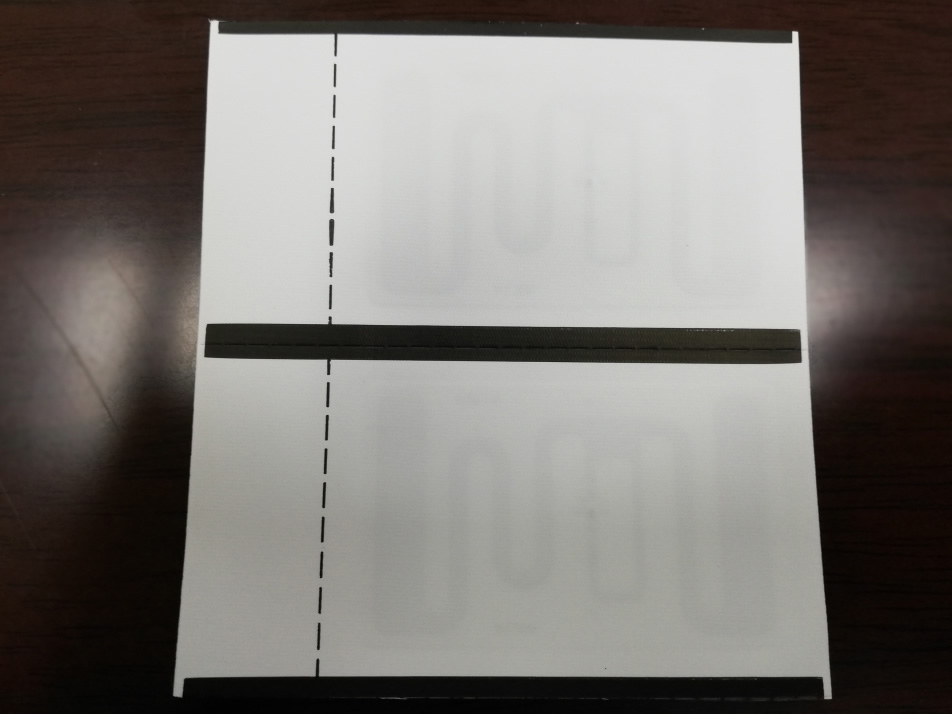

*Personalization	①Double face laminate；2*80mm black lump；dotted line in the middle of black lump ②We could print barcode/number etc.; write EPC for you  or you could print by youeselves using Resin-based carbon tape

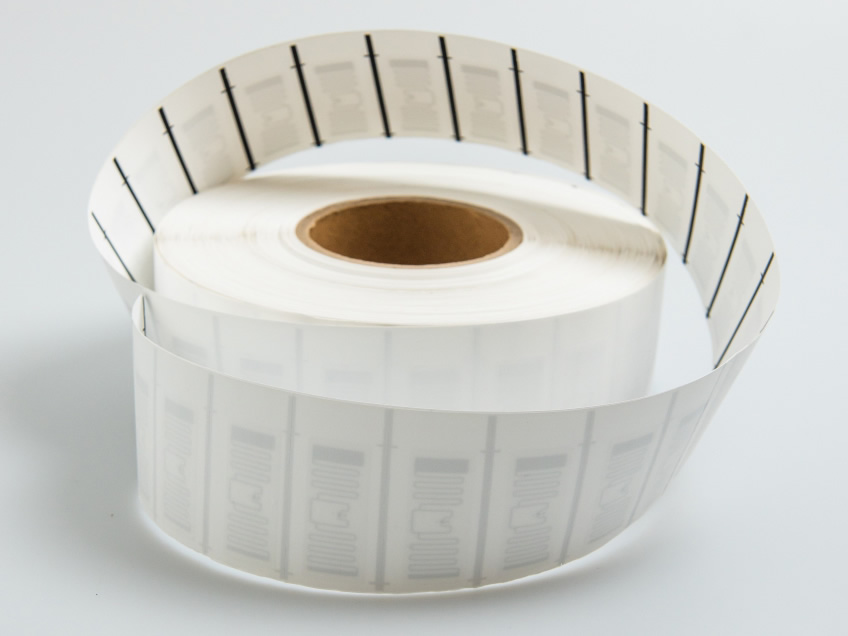

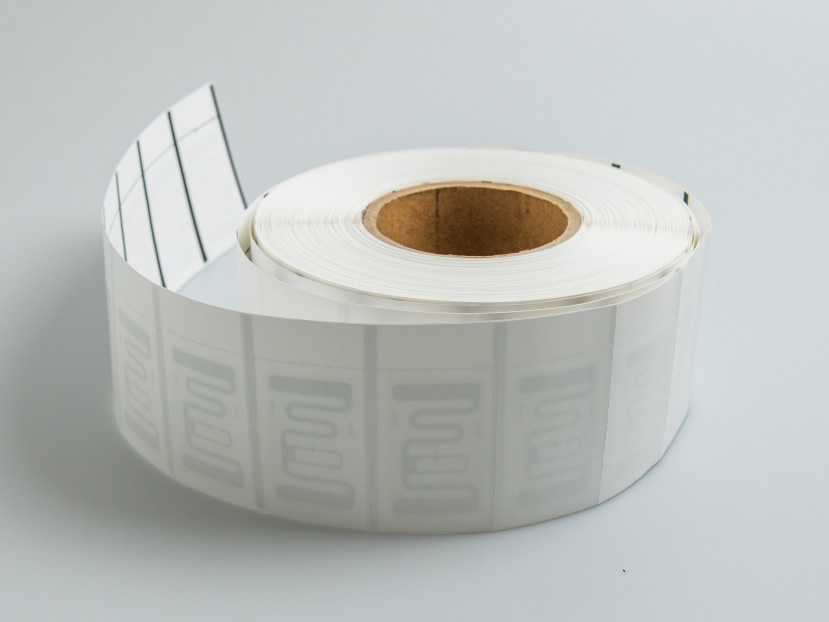

*Shipping Method	Single row reel form 2,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：7.2kg/carton
MOQ	24,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，32 bits TID，64 bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note

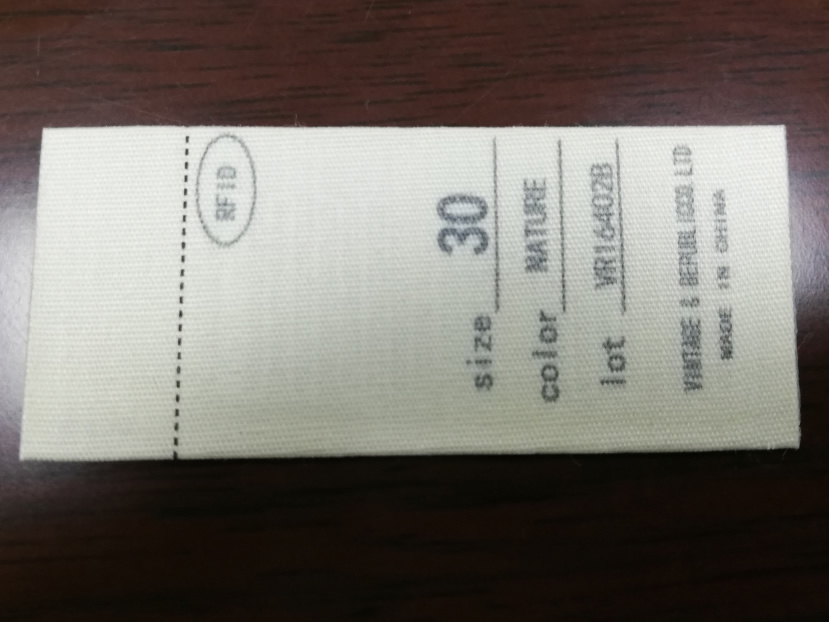

Product	JL-A05 RFID Wash Care Label
Example for application	Garment retail; Apparel; Hang-tags
*Integrated Circuit(IC)	Alien Higgs-4
*Label Size	2.362*1.18"(60*30mm)
*Label Material	Double face washing cloth,comfortable material ,bright color  ①Resistant to washing, scratching, smearing; ②Resistant to alcohol, detergent and other chemical properties
*Label Glue	Hot melt(pressure sensitive adhesive) ①Supplied by Henkel； ②Adhesion strength, speed, non - toxic environmental protection; ③- 10 ℃ to 80 ℃ temperature range
*Personalization	①Double face laminate；2*60mm black lump；dotted line in the middle of black lump ②We could print barcode/number etc.; write EPC for you  or you could print by youeselves using Resin-based carbon tape
*Shipping Method	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：3.7kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，32 bits TID，64 bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note

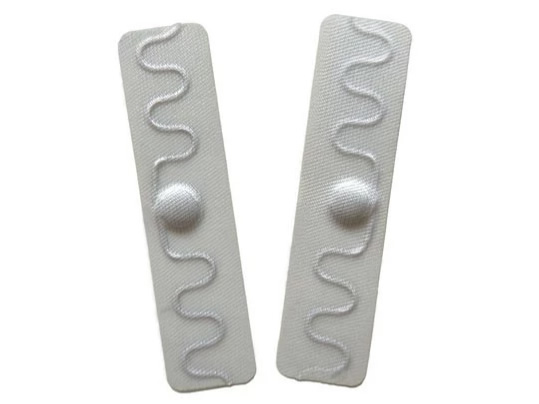

Product	JL-LT06(UHF RFID washable Tag)
Example for application	Tag that could be washed many times for quilt、sheet、towel、
Reading Distance	Up to 6 meters (up to 19 feets)

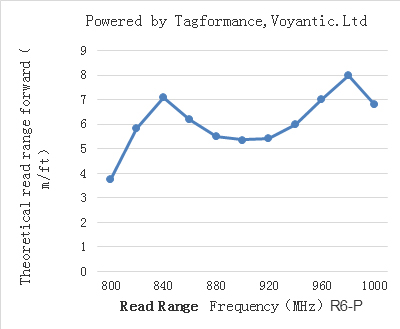

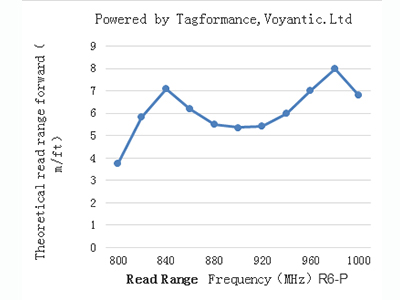

*Integrated Circuit(IC)	Impinj MR6-P
*Label Size	①2.95*0.43*0.06"(75*11*1.5 mm) ②2.72*0.55*0.06"(69*14*1.5 mm)
*Label Material	Full polyester
Storage Temperature	-40℃ to +120℃
Typical Washing Cycle	Washing: +100℃,200 minutes Drying: +180℃,15 minutes Ironing: +210℃,60 seconds Water Extractor: 60 bar,80 seconds
Chemical Resistance	All Chemicals common to the washing process
Shipping Method	500pcs/bag, 10/15/20/25 bags per carton
Patching Instructions	+204℃,12 seconds,0.5kg/m²
MOQ	500 pcs
Operating Frequency	865 - 928 MHz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
IC Memory	96-128 bits EPC,32-64 bits user，48 bits TID
Sample availability	Free samples are available upon request.
Tag Warranty	First of 200 wash cycles or 3 years from ship date
Comments	Dear: all marked ' * ' could be customized ,please take a note
