More Efficient and Low-cost RFID Tag Solution

Avoid interference to RFID labels caused by water or metal

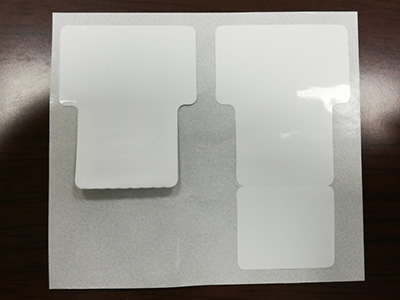

RFID flag label is an adhesive label with a non-adhesive, folding tab that offsets the inlay, which means the inlay will not touch the products, for some products with high content of liquid or metal, they will influence working performance of RFID tag. Using T-shaped tag will solve above mentioned problem.

Good viscosity
For the small sticking area behind the T-shaped tags, which means they use more sticky glue to prevent losing viscosity and falling off.

We adopt 9448A glue from 3M, whose viscosity is up to 150u to ensure the service life of T-shaped RFID labels.

Application

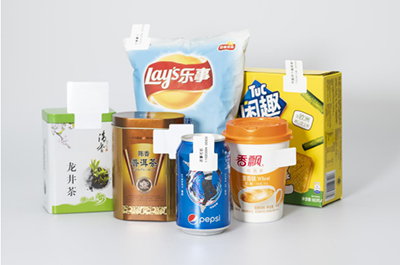

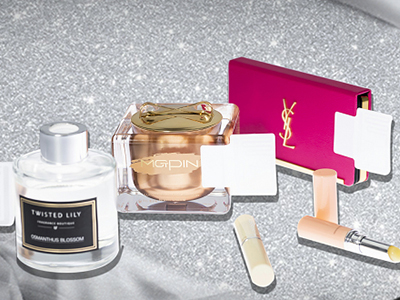

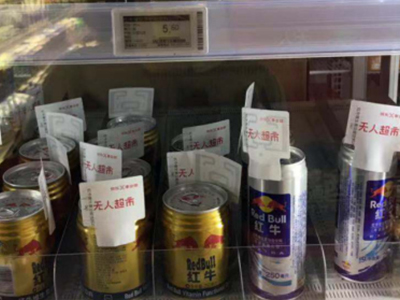

T-shaped labels are most frequently-used in unmanned retailing or package contain metals

For example,the package of some drugs will be covering with aluminum foil, so the RFID labels need to have good resistance of metal. The common HF labels with good resistance of metal are covered with magnetic sheet thickly, but the T-shaped HF labels seems light and has stable performance.

Below is the customized RFID flag label designed for a client from retailing, he convey his suggestion to us after using it that when print T-shaped labels, phenomenon of crinkle occurs, and hope us solve this problem.

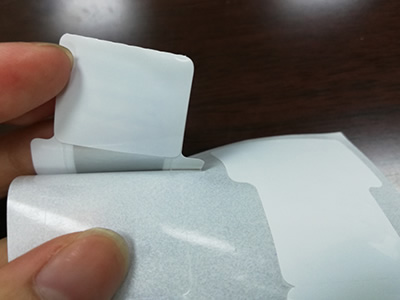

We improve the design of T-shaped labels, replace the non-adhesive core coil with adhesive and folding one, which will not influence printing. after printing fold the core coil along the center line, then the double face of labels will be glossy, which meet clients requirements and they sign another contract with us.

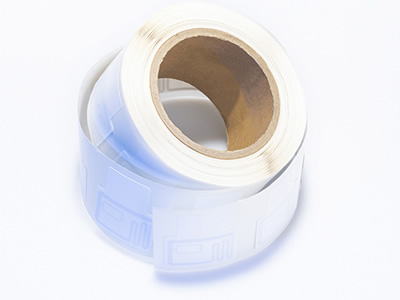

Product	JL-R07(Bright White PET Label (T shape))
Application Areas	Market(package material inclue metal&normal)
Integrated Circuit(IC) *	NXP U Code 8
Label Size *	1.969*1.732"(50*44mm)
Label Material *	75um bright white PET ①Excellent resistance to gas, water, oil ; ②Excellent resistance to high and low temperature，-10℃-+80℃; ③Good folding resistance; ④Non-toxic, tasteless, good hygiene and safety, can be directly used in food packaging
Label Glue *	3M9448A ①Supplied by 3M company ②Heat-resistant of 80 ℃ for long time, heat-resistance of 120 ℃ for short time; ③Excellent high temperature resistance and adhesion; ④High tensile strength

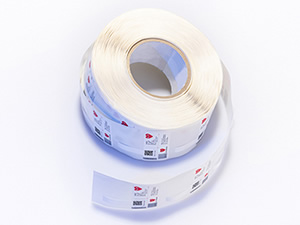

Personalization *	We can HEI ECO print and barcode\number etc. print; write EPC for you; or you could print by yourselves, using Resin-based carbon tape
Shipping Method *	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：15kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC, 96 bits TID
Comments	Dear: all marked ' * ' could be customized ,please take a note

Product	JL-R08(Label can be sticked on metal)
Example for application	Market(package material inclue metal&normal)

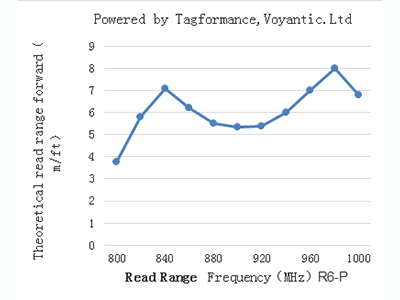

*Integrated Circuit(IC)	Impinj Monza R6-P
*Label Size	2.48*1.378"（63*35mm）
*Label Material	75um bright white PET ①Excellent resistance to gas, water, oil ; ②Excellent resistance to high and low temperature，-10℃-+80℃; ③Good folding resistance; ④Non-toxic, tasteless, good hygiene and safety, can be directly used in food packaging
*Label Glue	Waterproof double sided adhensive ①Heat-resistant of 80 ℃ for long time, heat-resistance of 120 ℃ for short time; ②Non-toxic, tasteless, good hygiene and safety, can be directly used in food packaging
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you; or you could print by yourselves, using Resin-based carbon tape
*Shipping Method	Single row reel form 3,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：6kg/carton
MOQ	24,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	96-128 bits EPC,32-64 bits user，48 bits TID
Comments	Dear: all marked ' * ' could be customized ,please take a note

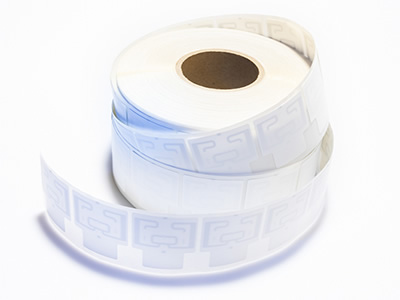

Product	JL-R10(Bright white PET label (T shape))
Application Areas	Market(package material inclue metal&normal)
*Integrated Circuit(IC)	Alien Higgs-4
*Label Size	2.362*2.126"(60*54mm)
*Label Material	75um bright white PET ①Excellent resistance to gas, water, oil ; ②Excellent resistance to high and low temperature，-10℃-+80℃; ③Good folding resistance; ④Non-toxic, tasteless, good hygiene and safety, can be directly used in food packaging
*Label Glue	3M9448A ①Supplied by 3M company ②Heat-resistant of 80 ℃ for long time, heat-resistance of 120 ℃ for short time; ③Excellent high temperature resistance and adhesion; ④High tensile strength
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you; or you could print by yourselves, using Resin-based carbon tape
*Shipping Method	Single row reel form 2,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：8kg/carton
MOQ	24,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，32 bits TID,64bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note
