More Efficient and Low-cost RFID Tag Solution

Eliminate the interference to RFID chip cause by liquid
The water will absorb the electromagnetic waves emitted by RFID chip, therefore the ordinary RFID labels could not be attached directly to the products with high content of water or its performance will be influenced. Due to the deep understanding in RFID labels and its structure, we could eliminate the influence on RFID chip cause by liquid totally by our design, like covering the labels with magnetic sheet or change design of antenna.

Perfectly suitable package

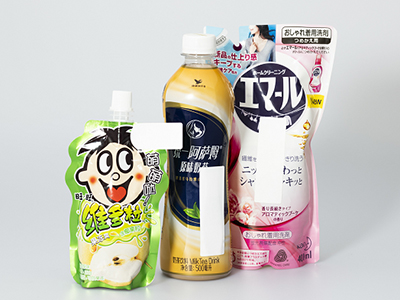

Different from flag tag, the RFID liquid labels is all covered with glue, which could attached directly to the surface of beverage bottle and mix with the package without affecting its package appearance.

It's worth to mention that we are planning to cooperate with flexible package producer, place the RFID liquid labels inside the flexible package material during producing it, then there is no need for attaching it to product, which could improve efficiency and save cost.

Widely-used
We usually adopt PP synthetic paper or PET material as surface paper to make liquid labels, the glue adopt the double sided tape, which make the labels have good waterproof and oil-proof performance and good resistance in high temperatures or low temperatures.

Recommend application
1. Newly retailing, like unmanned supermarket and vending machine
2. Medical and pharmacy industry, like oral drugs and transfusion system
3. The chemical material management in chemical plant

Manufacture
We usually use below material to make liquid labels due to its features. If you ask for other material, please contact us, we are willing to provide customized service for you
Paper or cloth：①50um high gloss white PET ② Avery 58g matt white PP synthetic paper（BW0052)
Glue: 3M 9448A waterproof double sided tape
Size: 63×35 / 46×23 / 80×25 / 50×44 / 60×54 (mm)

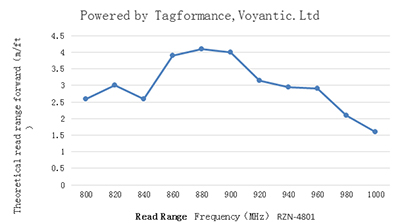

Inlay: ①AZ-M69+MR6-P，②RZN-4801+Higgs EC ，③KL-26U8+U code 8，④ALN-9726+Higgs 4，⑤KP-JU8+U code 8
Print:①PS Intermittent printing ② print with carbon ribbon for variable information

Product	JL-R11 RFID Tags On Liquids
Example for application	Market(stick on liquid bottle or normal package not inclue metal)
*Integrated Circuit(IC)	Alien Higgs-EC
*Label Size	3.15*0.984"（80*25mm）
*Label Material	Avery dennison 58g Sub white PP（BW0052)  ①Good environmental protection performance,easy to recover and waste treatment;  ②Good stability;  ③Corrosion resistance, durability, 100% waterproof, anti-chemical and anti-grease, good processing performance;  ④High strength;
*Label Glue	Waterproof double sided adhensive ①Heat-resistant of 80 ℃ for long time, heat-resistance of 120 ℃ for short time;  ②Non-toxic, tasteless, good hygiene and safety, can be directly used in food packaging
*Personalization	We can HEI ECO print and barcode\number etc. print; write EPC for you;  or you could print by yourselves, using Resin-based carbon tape
*Shipping Method	Single row reel form 2,500pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight：8kg/carton
MOQ	20,000pcs
Operating Frequency	840Mhz-960Mhz
International Standards	EPC Class 1 Gen 2
	ISO/IEC 18000-6C
Write Cycle	100,000@25℃，data save 10 years
IC Memory	128 bits EPC,128 bits user，80 bits unique TID，32 bits access password，32bits kill password
Comments	Dear: all marked ' * ' could be customized ,please take a note
