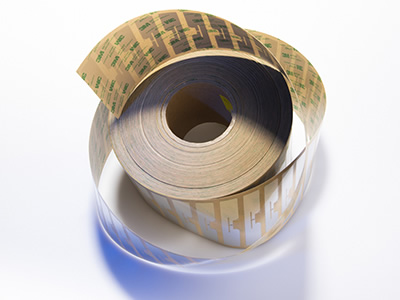

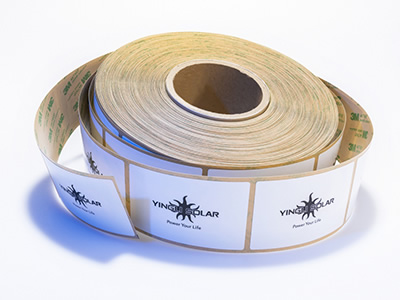

Kingloo high temperature-resistant labels adopt the material with good resistance of high temperature, including material used in inlay, surface material and glue, which pass through rigorous test. The long-term working temperature of this series of RFID labels is up to 149℃, and short-term working temperature is up to 204℃
ApplicationManufacture
We usually use below material to make RFID high temperature-resistant labels due to its features. If you ask for other material, please contact us, we are willing to provide customized service for you
Paper or cloth:①Avery high gloss PET (MZ0305) ② Avery matt white PP synthetic paper(BW0052, 58g) ③ Avery matt white bright white PET (MZ0097)
Glue: 3M 467MP double sided tape
Size: 54×86 / 96.5×23.2 / 98.18×12.31 (mm)
Inlay: ①HYD1012A+FM11RF08;②1020239B+SLI-X;③HYD2029+Higgs 3;④RZN-9640+Higgs 3
Print:①PS Intermittent printing ② print with carbon ribbon for variable information
Product | JL-AM22 High Temperature RFID Tags |
Example for application | Stick on charge pal shell |
*Integrated Circuit(IC) | Alien Higgs-3 |
*Label Size | 3.8*0.913"(96.5*23.2mm) |
*Label Material | / |
*Label Glue | 3M467MP ①Supplied by 3M company ②Excellent adhesion effect, can prevent falling off and excellent waterproof performance, good processing, good temperature resistance, good adhesion; ③Heat-resistant of 149 ℃ for long time, heat-resistance of 204 ℃ for short time; |
*Personalization | / |
*Shipping Method | Single row reel form 5,000pcs/roll/inner box, inner box size: 227*227*125mm 4 rolls/carton, carton box size :495*240*280mm Gross weight:14kg/carton |
MOQ | 20,000pcs |
Operating Frequency | 840Mhz-960Mhz |
International Standards | EPC Class 1 Gen 2 |
ISO/IEC 18000-6C | |
Write Cycle | 100,000@25℃,data save 10 years |
IC Memory | 96-480 bits EPC,512bits user,32 bits TID,64 bits unique TID,32 bits access password,32bits kill password |
Comments | Dear: all marked ' * ' could be customized ,please take a note |
Product | JL-AM23 High Temperature RFID Tags |
Example for application | Asset management; logistics |
Read Range | up to 10cm |
*Integrated Circuit(IC) | FUDAN FM11RF08 |
*Label Size | 2.126*3.386"(54*86mm) |
*Label Material | Avery dennison white bright PET(MZ0305) ①Excellent resistance to gas, water, oil ; ②Excellent resistance to high and low temperature,-50℃-+90℃; ③Good folding resistance; ④Non-toxic, tasteless, good hygiene and safety, can be directly used in food packaging |
*Label Glue | 3M467MP ①Supplied by 3M company ②Excellent adhesion effect, can prevent falling off and excellent waterproof performance, good processing, good temperature resistance, good adhesion; ③Heat-resistant of 149 ℃ for long time, heat-resistance of 204 ℃ for short time |
*Personalization | 3M467MP ①Supplied by 3M company ②Excellent adhesion effect, can prevent falling off and excellent waterproof performance, good processing, good temperature resistance, good adhesion; ③Heat-resistant of 149 ℃ for long time, heat-resistance of 205 ℃ for short time; |
*Shipping Method | We can HEI ECO print for you; |
*Shipping Method | Single row reel form 1,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight:8kg/carton |
MOQ | 24,000pcs |
Operating Frequency | 13.56MHz |
International Standards | ISO 14443 |
Write Cycle | 100,000@25℃,data save 10 years |
IC Memory | 8K bits user memory |
Comments | Dear: all marked ' * ' could be customized ,please take a note |
Product | JL-AM24 High Temperature RFID Tags |
Application Areas | Libraries; asset and document tracking; industrial applications |
Read Range | 1.5m by fixed reader, 30dBm |
*Integrated Circuit(IC) | NXP SLI-X |
*Label Size | 2.126*3.386"(54*86mm) |
*Label Material | Avery dennison 58g Sub white PP(BW0052) ①Good environmental protection performance,easy to recover and waste treatment; ②Good stability; ③Corrosion resistance, durability, 100% waterproof, anti-chemical and anti-grease, good processing performance; ④High strength; |
*Label Glue | 3MVHB9460 ①Supplied by 3M company; ②Water resistance, heat resistance, strong adhesion, excellent weather resistance, chemical solvent resistance, aging resistance and so on |
*Personalization | We can HEI ECO print for you |
*Shipping Method | Single row reel form 1,000pcs/roll/inner box, inner box size: 227*227*85mm 4 inner boxes/carton, carton box size :495*240*200mm Gross weight:8kg/carton |
MOQ | 24,000pcs |
Operating Frequency | 13.56MHz |
International Standards | ISO 15693 |
Write Cycle | 100,000@25℃,data save 10 years |
IC Memory | 896 bits user memory |
Comments | Dear: all marked ' * ' could be customized ,please take a note |
